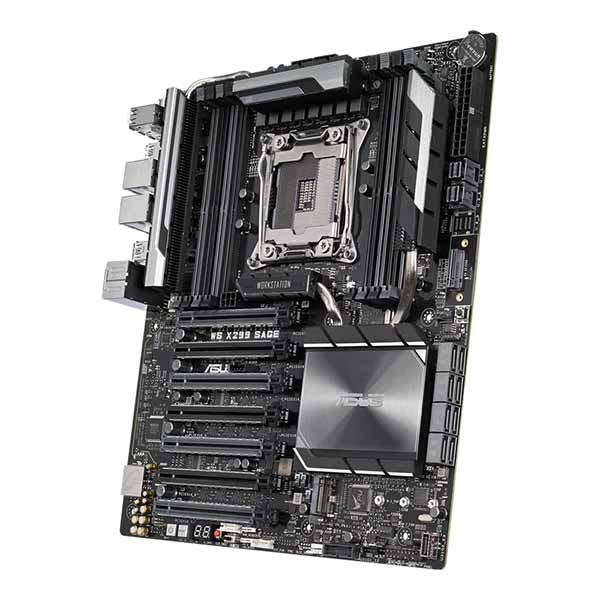

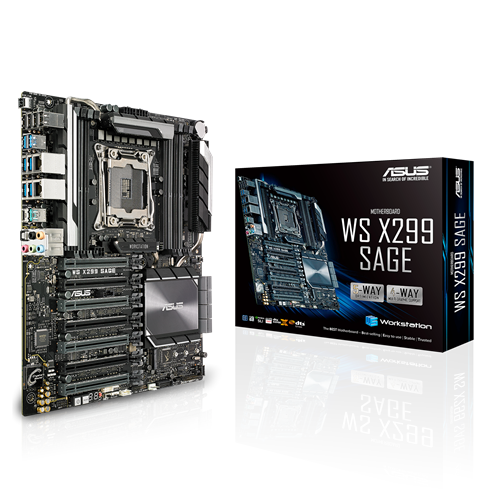

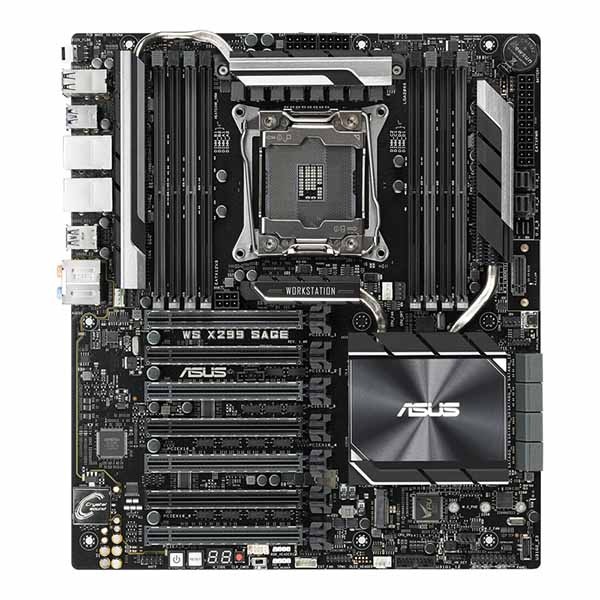

ASUS WS X299 SAGE Intel LGA 2066 CEBマザーボード

クアッドGPU、DDR4 4200MHz、デュアルM.2とU.2、USB 3.1 Gen 2コネクタ、ASUS Control Centerを搭載したIntel LGA 2066 CEBマザーボード

[特徴]
・クアッドGPUのグラフィックス性能: 最大4枚のデュアルスロットグラフィックスカードを搭載でき、NVIDIA SLIまたはAMD CrossFireXの4-Way構成に対応
・5-Way Optimization: ワンクリックでシステム全体のチューニングを施し、幅広い負荷に最適化されたオーバークロックとインテリジェントな冷却を実現。
・業界をリードする冷却機能:　Fan Xpert 4、または、ASUSのUEFIで水冷やファンを総合的に管理
・超高効率のVRMヒートシンク: 金属フィンアレイ設計で放熱のための表面積を最大化し、スロットリングなしで性能を実現
・ASUS Control Center: 中小企業向けの使いやすく安全で低コストなITの一元管理ソフトウェアユーティリティ
・超高速ストレージ: 最大32GbpsのデュアルM.2とU.2、最大10GbpsのオンボードUSB 3.1 Gen 2 Type-A/Type-Cポート、フロントパネルコネクタ

[仕様]

対応CPU	Intel Socket 2066 Core X-Series Processors Supports Intel Virtual RAID on CPU (VROC) * The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types * Refer to www.asus.com for CPU support list
搭載チップセット	Intel X299
メインメモリ	Intel Core X-series Processors (6-core above) 8 x DIMM, Max. 256GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel Core X-series Processors (4-core) 4 x DIMM, Max. 64GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. * Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.
マルチGPU対応	Supports NVIDIA 4-Way SLI Technology Supports AMD 4-Way CrossFireX Technology
拡張スロット	7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) *2
ストレージ機能	Intel X299 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) 2 x U.2 connector*1 Support Raid 0, 1, 5, 10 Support Intel Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID Supports Intel Smart Response Technology Intel Rapid Storage Technology 15 support Intel Optane Memory Ready Intel Virtual RAID (VROC) support for CPU RAID
LAN機能	Intel I210-AT, 1 x Gigabit LAN Controller(s) Intel I219-LM , 1 x Gigabit LAN Controller(s)
オーディオ機能	Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能	Intel X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (6 at back panel, , 2 at mid-board) Intel X299 Chipset : 4 x USB 2.0 port(s) (4 at back panel, ) ASMedia USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) ASMedia USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
独自機能	OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App TPU Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 8 Phase CPU Power Design - Industry leading Digital 2 Phase DRAM Power Design AURA : - Aura RGB Strip Headers - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - Crystal Sound 3 ASUS EZ DIY : - ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS Flashback - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) Asus Control Center (ACC) IT management software supported
動作対応OS	Windows 10 64-bit
背面インターフェース	2 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 2 (black)USB Type-CTM 6 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 (one port can be switched to USB BIOS Flashback ) 1 x Optical S/PDIF out 1 x USB BIOS Flashback Button(s) 1 x 8-channel Audio I/O
基板上インターフェース	1 x Aura Addressable Strip Header(s) 2 x U.2 port 1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 6-pin ATX Power connector 2 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Water Pump header (4-pin) 1 x System panel connector 1 x Thermal sensor connector 1 x USB 3.1 Gen 2 front panel connector 1 x CPU_OV jumper 1 x MemOK! Button 1 x M.2 Fan Header
主な付属品	User´s manual Addressable LED extension cable 1 x Vertical M.2 bracket set I/O Shield 1 x COM port cable(s) 8 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x Supporting DVD 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector
フォームファクター（サイズW×D）	CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
質量	Color Box(3-in-1) Net Weight: 5.55kg Gross Weight: 8.06kg Bulk Pack(5-in-1) Net Weight: 6.99kg Gross Weight: 9.37kg
動作環境	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
その他	*Intel VROC is supported via RSTe, and Intel VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel VROC_HW_key installed. *1 The U.2 connectors are only supported on 44-Lane CPUs. *2 Please refer to the block diagrams in the Appendix for more details in the manual.

JAN：889349853672
