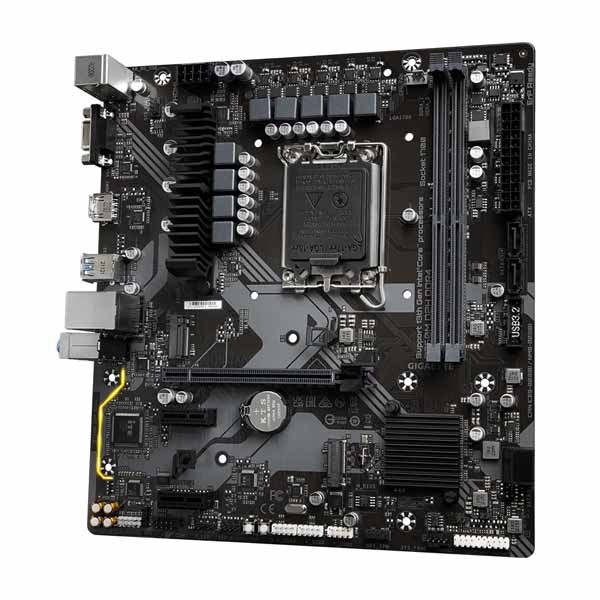

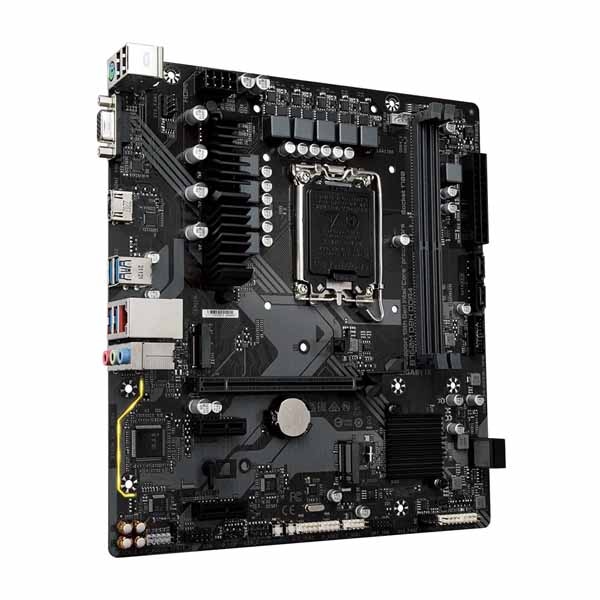

GIGABYTE B760M D2H DDR4 第13 & 12世代 Intel Core プロセッサー対応 Micro-ATX マザーボード

[特徴]
・第 13 & 12 世代 Intel Core プロセッサー対応
・Hybrid 6+2+1 デジタル電源フェーズ設計
・Dual Channel DDR4 : 2 スロット搭載 (XMP 対応)
・高速ストレージ : 2*PCIe 4.0 x4 M.2 コネクタ
・EZ-Latch：クイックリリース付 PCIe x16 スロット
・高速ネットワーク : 2.5 GbE 有線 LAN
・充実した接続性 : HDMI, D-Sub
・Smart Fan 6
・Q-Flash Plus

[仕様]

CPU	1.　LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors 2.　L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
チップセット	Intel B760 Express Chipset
メモリー	1.　Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 2.　2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory 3.　Dual channel memory architecture 4.　Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5.　Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6.　Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
内蔵グラフィック	Integrated Graphics Processor-Intel HD Graphics support: 1.　1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 2.　1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 　* Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
オーディオ	1.　Realtek Audio CODEC 2.　High Definition Audio 3.　2/4/5.1/7.1-channel 　* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. 4.　Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
拡張スロット	CPU: 　1.　1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 　1.　2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
ストレージインターフェース	CPU: 　1.　1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 　1.　1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 　2.　4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: 　1.　6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 　2.　4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 　1.　4 x USB 2.0/1.1 ports available through the internal USB headers
内部入出力コネクタ	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
バックパネルコネクタ	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O コントローラー	iTE I/O Controller Chip
ハードウェアモニター	1.　Voltage detection 2.　Temperature detection 3.　Fan speed detection 4.　Water cooling flow rate detection 5.　Fan fail warning 6.　Fan speed control 　* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1.　1 x 128 Mbit flash 2.　Use of licensed AMI UEFI BIOS 3.　PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
特徴	1.　Support for GIGABYTE Control Center (GCC) 　* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 2.　Support for Q-Flash 3.　Support for Q-Flash Plus
バンドルソフトウェア	1.　Norton Internet Security (OEM version) 2.　LAN bandwidth management software
オペレーティングシステム	1.　Support for Windows 11 64-bit 2.　Support for Windows 10 64-bit
フォームファクター	Micro ATX Form Factor; 24.4cm x 22.5cm

JAN：0889523035085
