商品説明

※画像・商品情報について

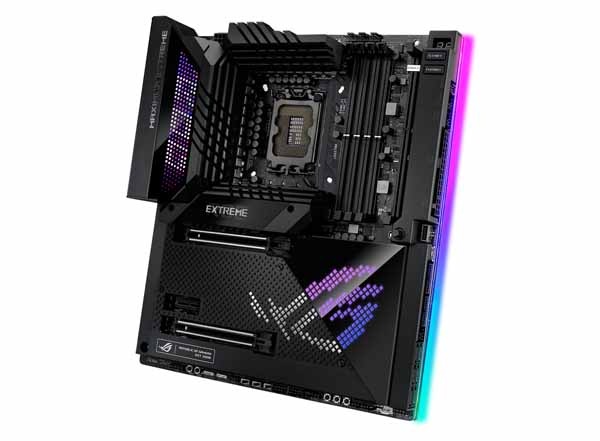

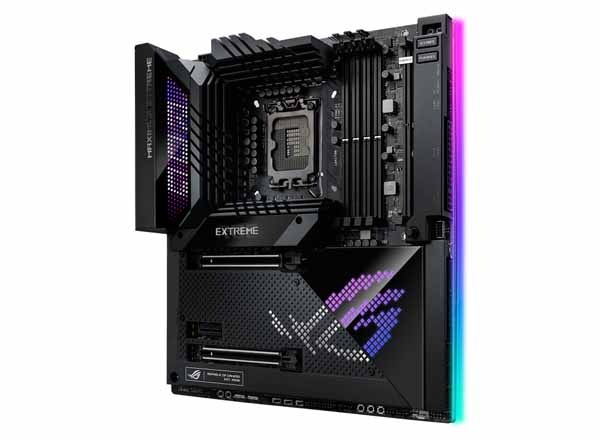

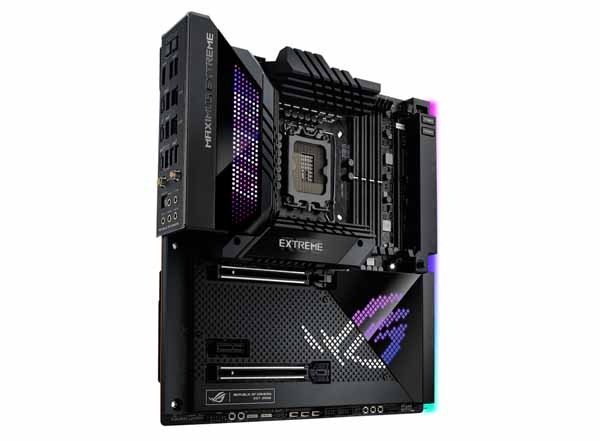

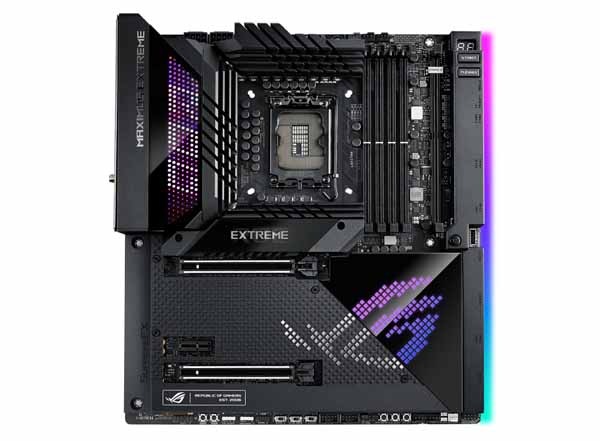

ROG MAXIMUS Z690 EXTREME

[特徴]
・第12世代インテル® Core™、Pentium® Gold、Celeron®プロセッサー対応のLGA 1700ソケット

インテリジェントコントロール: セットアップを簡素化し、パフォーマンスを向上させるASUS独自のソフトウェアおよびファームウェアユーティリティ: AI Overclocking, AI Cooling, AI Networking, 双方向AIノイズキャンセル

堅牢な電源ソリューション:定格105Aの24+1電源ステージ、ProCool II電源コネクタ、MicroFine合金チョーク、プレミアム金属コンデンサ

包括的な熱設計:冷間鍛造ヒートシンク、VRMヒートシンクを大型化しアルミ製I/Oカバーを搭載、高伝導率サーマルパッド、バックプレート付きの5つのM.2ヒートシンク、ROGウォータークーリングゾーン

高性能ネットワーク:オンボードWiFi 6E、Marvell® AQtion 10Gb、Intel® 2.5Gbイーサネット、およびASUS LANGaurd搭載

優れた接続性:PCIe®5.0、Gen 5 M.2、Thunderbolt™4対応USB 3.2 Gen 2x2フロントパネルコネクタ、リアトリプルUSBType-C®ポート。

業界をリードするゲーミングオーディオ:ROG SupremeFX ALC4082コーデックとESS® ES9018Q2C DACの組み合わせにより、高性能なオーディオを実現

比類なきパーソナライゼーション:AniMe Matrix™ LEDディスプレイ、2インチLiveDash OLED、ASUS独自のAura Sync RGBライティング(1つのRGBヘッダーと3つのアドレサブルGen 2 RGBヘッダーを含む)。

DIYフレンドリーなデザイン: 事前に取り付けられたI/Oシールド、PCIeスロット Q-release、V-Latchスイッチ、BIOS FlashBack™、Q-Code、FlexKey、Q-Connector、M.2 Q-Latch、SafeSlot、ROG Glavis、ROGグラフィックスカードホルダー

有名なソフトウェア:バンドルされた1年間のAIDA64 Extremeサブスクリプションと統合されたMemTest 86を備えた直感的なUEFIBIOSダッシュボード



[仕様]
対応CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット Z690
メインメモリ 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/
4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem III

*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
グラフィックス機能 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs

* Graphics specifications may vary between CPU types.
Please refer to www.intel.com for any updates.

***Support 4K@60Hz as specified in HDMI® 2.1.
拡張スロット Intel® 12th Gen Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**

Intel® Z690 Chipset***

1 x PCIe 3.0 x1 slot

* Please check PCIe bifurcation table in support site.

** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.

*** Support Intel® Optane Memory H Series on PCH-attached PCIe slot.
マルチGPU機能 NVIDIA 2-Way SLI® Technology*
*Support varies with different graphics cards
ストレージ機能 Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110***
- Intel® 12th Gen processors support PCIe 5.0 x4 mode.

M.2_2 slot (Key M), type 2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset**

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)

DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s ports****

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.

****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.
LAN機能 1 x Intel® 2.5Gb Ethernet
無線機能 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later.
** Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later.
USB機能 Rear USB: Total 10 ports
1 x Thunderbolt™ 4 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)

Front USB: Total 10 ports
1 x Thunderbolt™ 4 connector (1 x USB Type-C®)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
オーディオ機能 ALC4082
ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4082

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- ESS® SABRE9018Q2C DAC/AMP

- LED-illuminated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover
背面
インターフェース
1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x HDMI® port
1 x ASUS Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Marvell® AQtion 10Gb Ethernet port
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
基板上
インターフェース
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

Fan and Cooling related

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector

Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

USB
1 x Intel® Thunderbolt™ 4 port (USB Type-C®)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
1 x Addressable Gen 2 header
1 x AURA RGB header
1 x BIOS Switch button
2 x BCLK button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x V_Latch switch
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
独自機能 Y
Extreme OC Kit
- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode

Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Steel backplate
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

AURA Sync
- ROG AURA sync backplate
- AURA RGB header(s)
- Addressable Gen 2 header(s)

Dual BIOS

OLED 2"

Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

ASUS HYDRANODE
- 2 x Chassis fan support*
(CHA_FAN1P,CHA_FAN2P)

* Visit ASUS Website for the latest compatibility list.
ソフトウェア機能 ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- ROG True Voltician
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- BullGuard Internet Security (1-year full version)

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
- OLED Display
- AniMe MatrixTM LED Display

AI Suite 3
- Easy Optimization with AI Overclocking
TPU
EPU
DIGI+ Power Control
Turbo app

MyAsus

WinRAR

UEFI BIOS
AI Overclocking Guide

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ

Mode MemTest86
BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
管理機能 WOL by PME, PXE
主な付属品 Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cables
1 x RGB extension cable
3 x ROG weave SATA 6G cables
4 x SATA 6Gb/s cables
1 x 3-in-1 Thermistor cables pack

ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape
1 x Fan Controller manual

ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2

ROG True Voltician
1 x ROG True Voltician
4 x cables for ROG True Voltician

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 SSD screw package
1 x Q-connector
1 x ROG CLAVIS DAC
1 x ROG graphics card holder
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
1 x Thermal pad package for M.2 heatsink

Installation Media
1 x USB drive with utilities and drivers

Documentation
1 x User guide
対応OS Windows® 11 64-bit, Windows® 10 64-bit
フォームファクター Extended ATX
30.5cm x 27.7cm

JAN:195553462754

商品レビュー

オーさん
評価1
評価2
評価3
評価4
評価5
5
ROG最高峰マザーボードで所有欲が完全に満たされます。 発売日に購入しましたが機能が豊富すぎて使いきれません笑 付属品も満載でさすが最上位といったところ。 ドットの部分を編集して色々デザインできるのですが面白く数日間遊んでしまいました。 OLED部分も温度など色々表示できて見てるだけでも満足します。 メモリ4枚挿し使用なのでOC特化という感じではないですがそこそこ耐性はありました。 最上位ROGが好きな方にはエクストリームですね!
