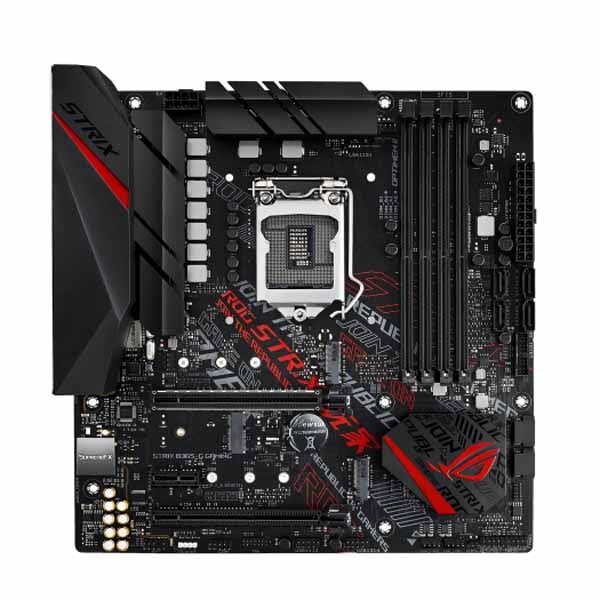

ASUS ROG STRIX B365-G GAMING mATXゲーミングマザーボード

ROG STRIX B365-G GAMING
Aura Sync RGB、プリマウントI / Oシールド、デュアルM.2、HDMI、DVI、SATA 6 GbpsおよびUSB 3.1 Gen 2を搭載したIntel LGA-1151 B365 mATXゲーム用マザーボード

[特徴]
・LGA1151ソケット：第9 /第8世代Intel®Core™デスクトッププロセッサに対応
・Aura Sync RGB: LEDストリップを含む互換性を持つ多彩なPCギアとシンクロしたLEDイルミネーションを実現
・イージーDIY: プリマウントI/Oシールド、ASUS SafeSlot、プレミアムコンポーネントで最大級の耐久性を実現
・ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-Aコネクタ、HDMI、DVIを搭載
・ゲーミングネットワーク：より滑らかで、より安全で、遅延のないオンラインプレイのためのIntelギガビットイーサネット、LANGuard、およびGameFirst
・ゲーミングオーディオ: SupremeFX S1220AとSonic Studio IIIの組み合わせで画面の中に入り込んだような没入感を提供
・高度な冷却機能: マシンに合わせて調整されたシステム全体のチューニングと冷却プロファイルを自動的に生成


[仕様]

対応CPU	Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0
搭載チップセット	Build in Intel® B365
メインメモリ	4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Intel® B365 Chipset Supports Intel® Extreme Memory Profile (XMP)
グラフィックス機能	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz
マルチGPU対応	Supports AMD 2-Way CrossFireX Technology
拡張スロット	1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (max at x4 mode) *1 1 x PCIe 3.0 x1
ストレージ機能	Intel® B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready * 6 x SATA 6Gb/s port(s)
LAN機能	Intel® I219V Anti-surge LANGuard ROG GameFirst Technology
オーディオ機能	ROG SupremeFX8-Channel High Definition Audio CODEC S1220A - High quality120dB(Line-out at rear)113dBSNR recording input - SupremeFX Shielding™ Technology - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path - Dual OP Amplifiers - Sonic Radar III - Sonic Studio III + Sonic Studio Link - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Optical S/PDIF out port(s) at back panel - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB機能	2 x USB 3.1 Gen 2 port(s) 6 x USB 3.1 Gen 1 port(s) Intel® B365 Chipset : 6 x USB 2.0 port(s)
ROGシリーズ 独自搭載機能	Pre-mounted I/O Shield ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Overwolf
独自機能	- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - GPU Boost - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - ASUS Fan Xpert 4 Core - ASUS MyLogo Armoury Crate Gamer´s Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable components - Digi+ VRM - SafeSlot AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 ASUS Quiet Thermal Solution : ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
背面 インターフェース	1 x DVI 2 x USB 3.1 Gen 2 (red)Type-A 4 x USB 3.1 Gen 1 (blue) Type-A Anti-surge LAN (RJ45) port 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
基板上 インターフェース	1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x AAFP connector 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x Clear CMOS jumper(s)
主な付属品	1 x CABLE TIE BLACK 1 x Strix door hanger 1 x ROG Strix stickers User´s manual 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD
BIOS機能	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI6.1
管理機能	WOL, PXE
OS	Windows® 10 64-bit
フォームファクター （サイズW×D）	9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) mATX Form Factor
その他	*1 When the M.2 Socket with E key is occupied, PCIe x16_2 will run at x2 mode. *2 The M.2_1 socket shares bandwidth with SATA6G_1 ports when using M.2 SATA mode device.

JAN：192876349168
