AMD EPYC 7B13を搭載してBIOSも最新にして動作確認を行ったとことnvme M2 SSDのポートの片方が認識しない不具合が代理店の的確な指示でジャンパーピンの位置を替えればいいとわかりまして、その対応をした結果、正常な動作が確認できました。代理店のサポートが迅速で的確でした。

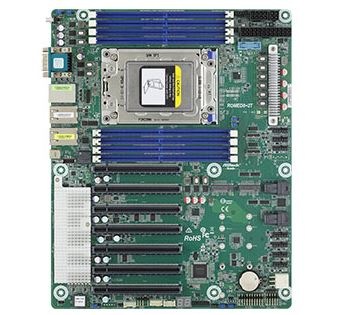

ASRock Rack ROMED8-2T サーバー向けATXマザーボード
- メーカー名
- ASRock Rack
- 商品コード
- MB5044
155,349円(税込)
評価1
評価2
評価3
評価4
評価5
△残りわずか
商品説明
・ATX 12'' x 9.6''
・Single Socket SP3 (LGA4094) support AMD EPYC™ 7002/7001 series processor family
・Supports 8 Channels DDR4 3200/2933/2666/2400 RDIMM,LRDIMM/NV DIMM 8 x DIMM slots
・Supports 8x SATA3 6.0 Gb/s (from 2x mini SAS HD), 1x SATA DOM(BOM option), and 2 x M.2
・Supports 2 X 10G LAN by Intel X550 -AT2
・Supports 7 PCIe 4.0x 16
・Supports 2 OCulink(share with PCIE2 by Jumper)
| Physical Status | Form Factor | ATX |
| Dimensions | 12'' x 9.6'' (30.5 cm x 24.4 cm) | |
| Processor System | CPU | - AMD EPYC™ 7002/7001 series processor family - max 225W |
| Socket | Single Socket SP3 (LGA4094) | |
| System Memory | Capacity | 8 DIMM slots |
| Type | - Eight Channel DDR4 memory technology - Supports DDR4 RDIMM and LRDIMM |
|
| DIMM Size Per DIMM | - RDIMM: 64GB*,32GB, 16GB, 8GB* - LRDIMM: 256GB*,128GB, 64GB** - NV DIMM:32GB*** *64GB wait device to validate **256GB wait device to validate ***wait device to validate |
|
| DIMM Frequency | - RDIMM: 3200/2933/2666/2400MHz - LRDIMM: 3200/2933/2666/2400MHz - NV DIMM: 3200/2666/2400MHz* *wait device to validate |
|
| Voltage | 1.2V | |
| Expansion Slot | PCIe 4.0 x 16 | - PCIE1: Gen4 x16 link - PCIE2: Gen4 x16 link or Gen4x8 link+2x M.2+2x miniSASHD or no PCIE slot +2x OCulink+2xM.2+2x miniSASHD(by jumper) - PCIE3: Gen4 x16 link - PCIE4: Gen4 x16 link - PCIE5: Gen4 x16 link - PCIE6: Gen4 x16 link - PCIE7: Gen4 x16 link |
| Storage | SATA Controller | 8 x SATA3 6.0 Gb/s (SATA_0_3:by miniSASHD.SATA_3 share with SATA_8(by BOM option), SATA_4_7: by miniSASHD,share with PCIE2 by Jumper) |
| OCuLink for U.2 | 2( OCU1 & OCU2, share with PCIE2 by Jumper) | |
| Ethernet | Interface | 10000/1000 /100 Mbps by Intel® X550-AT2 |
| LAN Controller | - 2 x RJ45 10G base-T by Intel® X550-AT2 - 1 x RJ45 Dedicated IPMI LAN port by RTL8211E - Supports Wake-On-LAN - Supports Energy E_cient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE - LAN1 supports NCSI |
|
| Management | BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN | |
| Features | - Watch Dog - NMI |
|
| Graphics | Controller | ASPEED AST2500 |
| VRAM | DDR4 512MB | |

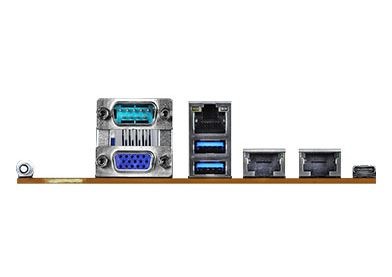

| Rear Panel I/O | VGA Port | 1 x D-Sub |
| USB 3.2 Gen1 Port | 2 | |
| USB 3.2 Gen2 Port | 1(Type C) | |
| Lan Port | - 2+1 RJ45 Gigabit Ethernet LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
|
| Serial Port | 1 x COM port | |
| UID Button/UID LED | 1 | |
| Internal Connector | SATA DOM | 1(BOM option) |
| M.2 | 2(M2_1(share with PCIE2 by Jumper): 2230/2242/2260/2280, SATA/PCIE Gen4(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4)) | |
| Auxiliary Panel Header | 1 (includes chassis intrusion, location button & LED, and front LAN LED) | |
| TR1 Header | 1 | |
| TPM Header | 1 | |
| IPMB Header | 1 | |
| Fan Header | 7 Fans x 6-pin (1CPU/4Front/2Rear) | |
| ATX Power | 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot) | |
| USB 3.2 (Gen1) Header | 1 (supports 2 USB 3.0 ports) | |
| USB 3.2 (Gen2) Header | 1 (supports 2 USB 3.0 ports) | |
| NMI Button | 1 | |
| Front Panel | 1(rst, pwrbtn, hddled, pwrled) | |
| Speaker Header | 1(4pin) | |
| BMC_SMB Header | 1 | |
| Clear CMOS | 1 | |
| PSU SMB Header | 1 | |
| Onboard LED | Fan Fail LED | 7 |
| System BIOS | BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash |
|
| Hardware Monitor | Temperature | - CPU Temperature Sensing - MB/TR1/Card side Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
|
| Voltage | - Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB | |
| Support OS | OS | Microsoft® Windows® - Server 2016 (64 bit) - Server 2019 (64 bit) Linux - RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit) - CentOs 8.0 (64 bit) / 7.6 ( 64 bit) - SUSE SLES 15.1 (64 bit) / 12.4 (64 bit) - UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit) - CITRIX Hypervisor 8.1 Virtual - VMWare® ESXi 6.5 u3 / 6.7 u3 - vSphere 6.5 u3/ / 6.7 u3 * The SUSE Enterprise Linux Server 15.1 (64 bit) / 12.4 (64 bit) system only supports UEFI BOOT. * Please refer to our website for the latest OS support list. |
| Environment | Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
JAN：4710483931130
