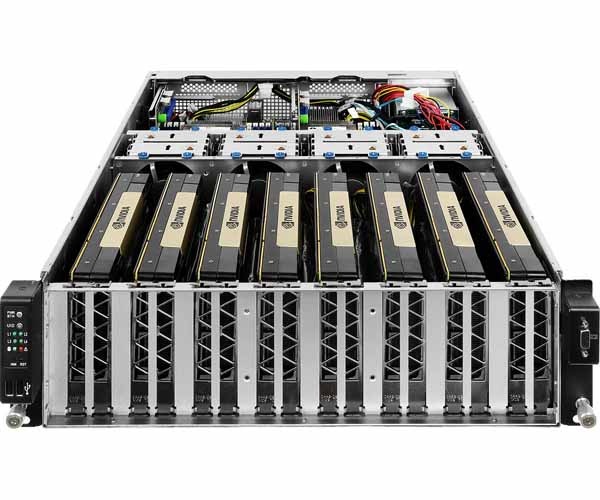

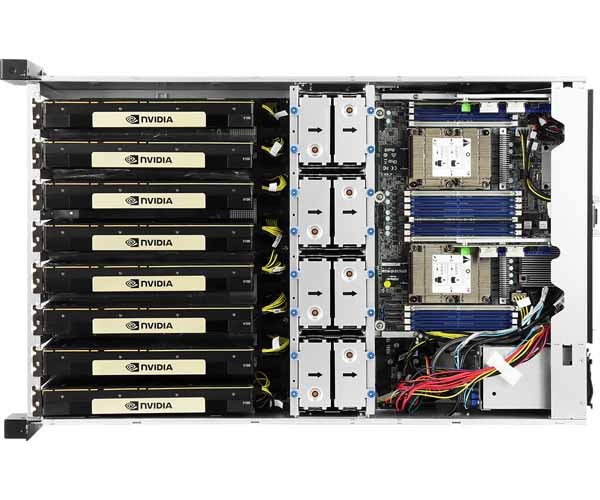

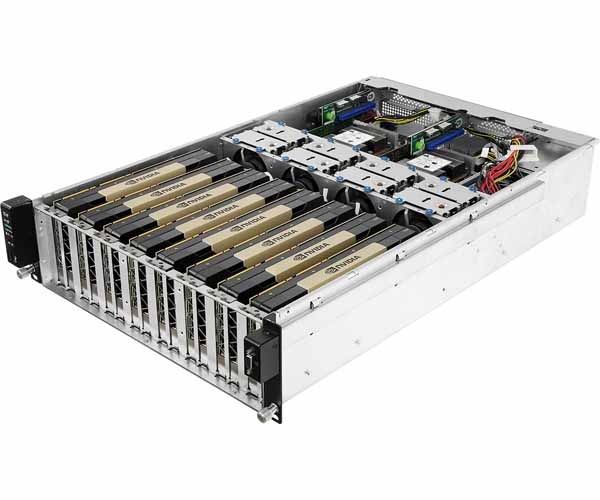

ASRock Rack 3U GPGPU System 3U8G+/C621　3Uラックマウント型ベアボーン

3U8G+/C621

[特徴]
・3U Rackmount with 1200W Redundant PSU (3+1)
・Dual Socket P (Purley) Intel Xeon Scalable Processors
・Support 16 x DDR4 DIMM slot, 2666/2400 RDIMM, LR DIMM
・Supports 8 x GPGPU card or 8 x GPGPU/MIC
・Supports Intel i350 Dual GLAN
・Supports 6 x SATA3 6.0 Gb/s or 6 x *SAS 12 Gb/s HDD (Hot Swap Bay)
・Supports 2 x PCIE card
*Need add a PCIE RAID card for SAS support.

[仕様]

システム概要	Form Factor - 3U Rackmount Chassis Model - 3U8G+/C621 Dimensions - 722.3 x 430 x 170.35 mm Support MB - SSI CEB, 12 x 10.56 inch (EP2C621D16GM)
フロントパネル	Buttons - Power button - UID button - Reset button - NMI button LEDs - 2 x LAN LEDs (L1, L2, LED) - 2 x Front LEDs - HDD LED - System event LED I/O Ports - 2 x USB 2.0 ports - VGA port x1

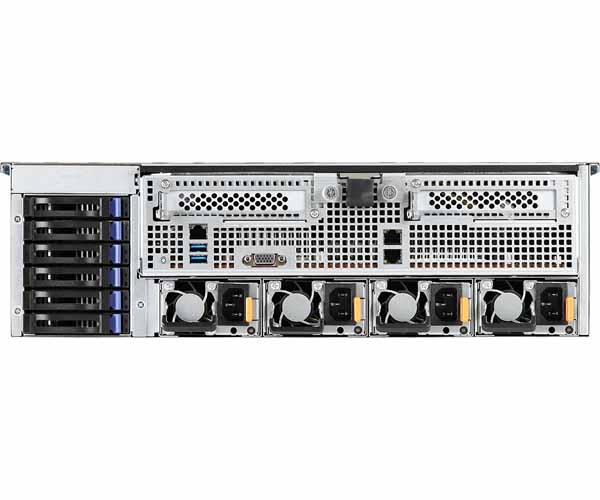

Rear IO	Slimline CONN - 4 ( for 2 x Low Profile PCIE card (one x8, another x16) USB 2.0 - 2 USB 3.0 - 2 Serial Port - 1 VGA - 1 x D-Sub Lan Port - 2 (GLAN by Intel® i350)+1 (IPMI) Lan port (RJ45) - LAN Ports with LED (ACT/LINK LED and SPEED LED)
外部ドライブベイ / Storage	Front Side Drive Bay - 6 Bay 2.5" SATA HDD (6Gb/s) or 6 x *SAS (12Gb/s) *Need add a PCIE RAID card for SAS support.
Power Supply	Type - 4 (3+1), Redundant Output Watts - 1200W, Platinum
System Fan	Fan - 80 x 38 mm x 8 Fail LED - Abnormal(DC on): LED ON (Solid Red) - Normal: LED OFF (For the FAN in the center)
System Switch board	Switch IC - PLX 8747 Supports GPU Card - 8 x GPGPU card or 8 x GPGPU/MIC (Support PCIE 3.0x16)
GPGPU card	GPGPU Watts - Max 300w /per card Support GPGPU - 8 x GPGPU card or 8 x GPGPU/MIC (Support PCIE 3.0x16)
Physical Status	Form Factor - SSI CEB Dimensions - 12'' x 10.5'' (30.5 cm x 26.7 cm)
プロセッサ システム	CPU - Supports Intel® Xeon® Scalable Processors Socket - Dual Socket P Chipset - C621
システム メモリ	Capacity - 16 DIMM slots Type - 6 Channel DDR4 memory technology 2666/2400/2133 R DIMM/LR DIMM Voltage - 1.2V
Storage	SATA Controller - PCH: 8 x SATA3 + 1 x M.2
Ethernet	Interface - 1000 /100 /10 Mbps LAN Controller - 2 x RJ45 GLAN by Intel® i350
管理機能	BMC Controller - ASPEED AST2500 IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN Features - Watch Dog - NMI
グラフィックス機能	Controller - ASPEED AST2500 VRAM - DDR4 4GB
Rear Panel I/O	VGA Port - 1 x D-Sub USB 3.2 Gen1 Port - 2 Lan Port - 1 (IPMI) Lan port (RJ45) - LAN Ports with LED (ACT/LINK LED and SPEED LED) UID Button/UID LED - 1
Internal Connector	M.2 - 1 (up to 2280) Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM Header - 1 IPMB Header - 1 Fan Header - 2x CPU Fan, 2x system Fan (6-pin) ATX Power - 1 (24-pin) + 2 (8-pin) Front Panel - 1
System BIOS	BIOS Type - 256Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash
Hardware Monitor	Temperature - CPU Temperature Sensing - System Temperature Sensing - Card Side Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: CPU1/2, VCCM_AB/CD/EF/GH, +1.50_ PCH, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB
Environment	Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

JAN：4537694268004
