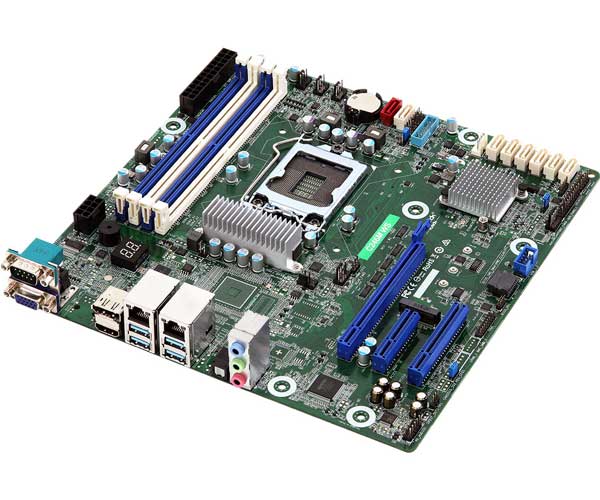

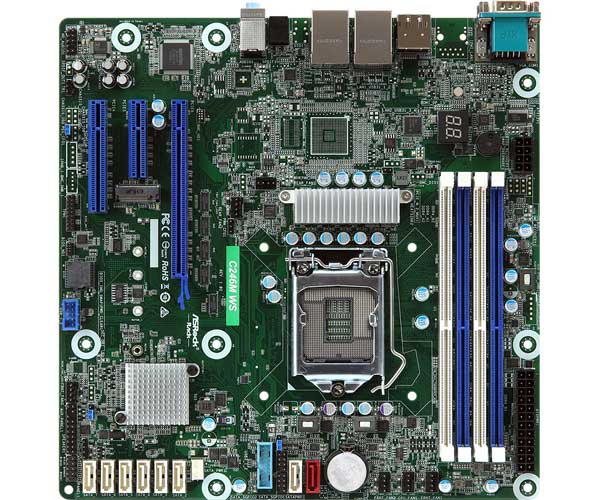

ASRock Rack XeonE-2100対応 mATXマザーボード ｜C246mWS
- メーカー名
- ASRock Rack
- 商品コード
- MB4653
商品説明
・Supports Intel Xeon E-2100 Processors
・Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 64 GB
・Support 8x SATA3 by C246
・Supports 1x PCIe 3.0 x16, 1x PCIe 3.0 x8, 1x PCIe 3.0 x4
・Supports Intel i210&i219LM
| MB Physical Status | ・Form Factor - mATX |
| Processor System | ・CPU - Supports Intel® Xeon® E-2100 Processors |
| System Memory | ・Capacity - 4 x DDR4 DIMM slots ・Type ・Voltage - 1.2V |
| Expansion Slot | ・PCIe 3.0 x 16- SLOT6: Gen3 x16 link, auto switch to x8 link if SLOT4 is occupied |
| Storage | ・SATA Controller - C246: 8x SATA3 6Gb/s (SATA0-7, SATA0 support support SATA DOM, and share with M.2(PCIE3.0(X4))/ SATA3) |
| Ethernet | ・Interface -1000 /100 /10 Mbps ・LAN Controller |
| Graphics | ・Controller- CPU pGFX ・VRAM- DDR4 32MB |

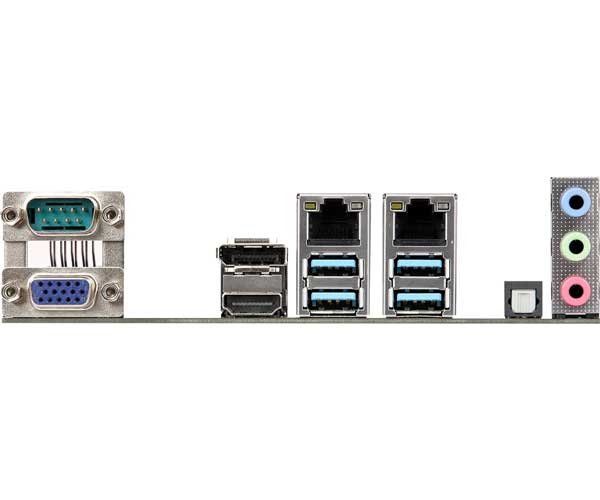

| Rear Panel I/O | ・PS/2 KB/Mouse - N/A |
| Internal Connector | ・COM Header - N/A ・SATA DOM - 1(share with M.2) ・M.2 - 1(2230/2242/2260/2280, Supports PCIE3.0(X4)/SATA3) ・Auxiliary Panel Header - 1 (CI, FSMB, 2FLANLED, LOCBLED)) ・TR1 Header - 1 ・TPM Header - 1 ・IPMI Header - 1 ・Buzzer - 1 ・Fan Header - 6(1CPU/3Front/2Rear) ・ATX Power - 1x (24-pin) + 1x (8-pin) ・USB 3.1 (Gen1) Header - 1 (support 2 USB 3.0) ・USB 2.0 Header - 1 (support 2 USB 2.0) ・Front Panel - 1 (RST, PWRBTN, HDDLED, PWRLED) ・Speaker Header - 1(4pin) ・Dr. Debug with LED - 1 |
| System BIOS | ・BIOS Type - 256Mb AMI UEFI Legal BIOS |
| Hardware Monitor | ・Temperature ・Fan ・Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCM, VCCIO, VCCSA, VCCST_SFR, V1.0M, 3VSB |
| Environment | ・Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
JAN：4537694267137
